Diagnostic Equipments
Odio et unde deleniti. Deserunt numquam exercitationem. Officiis quo odio sint voluptas consequatur ut a odio voluptatem. Sit dolorum debitis veritatis natus dolores. Quasi ratione sint. Sit quaerat ipsum dolorem.
CardioExpress SL6A
CardioExpress SL6A is a six-channel ECG recorder developed for a full range of working situations and to provide a cost-effective solution for hospital care areas, routine checks, and emergency cases.
Portable, lightweight design
● Convenient for mobile use and offices with limited space
Display
● 5.6” Color TFT LCD Touch Screen
Easy data input and operation
● Alphanumeric keyboard and one-touch operation
Power supply
● Built-in rechargeable battery, AC/DC power supply
Pacemaker detection
● Pacemaker detection that meets the requirements of ANSI/AAMI EC11
Interpretation
● Automatic measurement and interpretation for adults and pediatrics
R-R analysis
● The R-R analysis mode calculates related indicators of HRV (Heart Rate Variability).
Recording
● Internal thermal printer and external printer (contact Spacelabs for a list of compatible printers)
Memory and data transmission
● Supports external archiving to the Spacelabs Healthcare Sentinel System
Wi-Fi
● Built in Wi-Fi
Data Storage
● Internal: 500 10-second 12-channel recordings
Orders
● Supports orders for patient tests to be taken
Options
● Sentinel Cardiology Information Management System
● ID & 2D Barcode readers
● Roll stand and carrying bag
The evolution of ABPM
OnTrak is the result of over 40 years of expertise in the research and development of ambulatory blood pressure.
Spacelabs OnTrak Ambulatory Blood Pressure monitor has been comprehensive tested and validated for adults and children, to give you reassurance, confidence and consistent results when assessing a patient’s hypertension.
| Protocol | Passed |
|---|---|
| AAMI/ANSI/ISO 81060 (Adults & Children) | ✓ |
| British Hypertension Society | N/A |
| European Hypertension Society | ✓ |
Monitor your patients with up to seven days or 300 readings on two AA batteries.

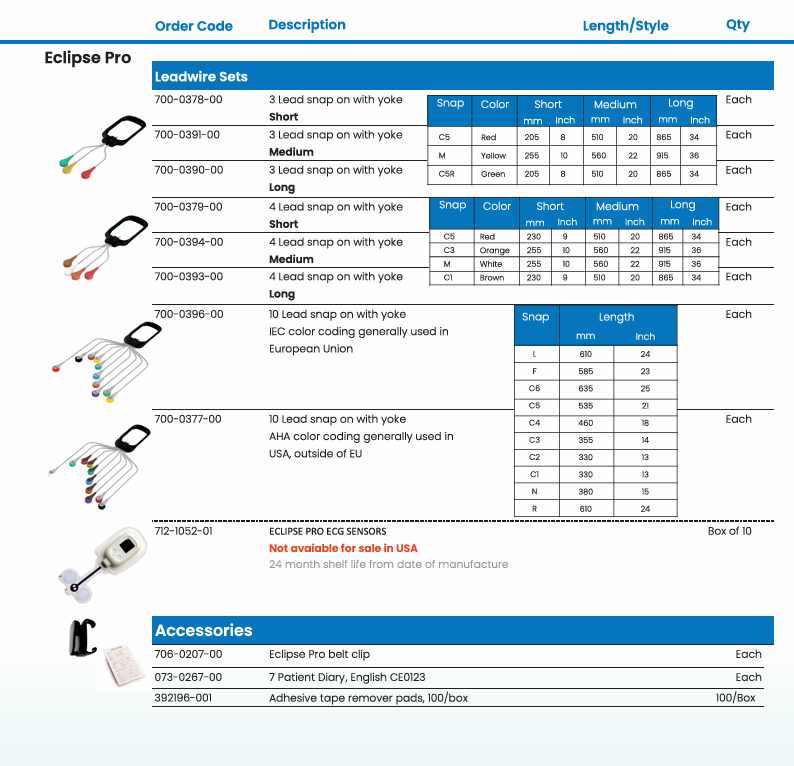

Eclipse Pro is your versatile choice for screening, arrhythmia, pacemaker detection.
A comfortable hook-up means your patient is more likely to be able to tolerate the recording
for the desired length of time,
and also avoid artifact and lead-off challenges.
Eclipse Pro is available with 3, 4 or 10 lead options as well as wearable patch.
The Eclipse Mini is patch only.
Sonicaid Team 3 Series
Advanced Fetal/Maternal Monitors
The NEW SONICAID Team 3 –
Fetal monitoring for the next generation
Stylishly designed not to dominate the bedside, Team 3 offers accurate & clear visual status of the fetus and mother. The range is full of features to provide cost-effective, reliable and accurate fetal/maternal monitoring.
Easy to use and intuitive via the icon driven touchscreen, the fetal heart rate can be displayed as “Big numbers” which auto scale for single, twins or triplet monitoring for optimum visibility.
With the widest range of options, Team3 provides excellence in fetal heart rate monitoring with high sensitivity transducers and unique digital processing delivering the best possible monitoring of all mums, from low BMI to high in all antenatal & labour settings.
8.4” COLOUR TOUCHSCREEN
● High resolution display can be viewed from a distance even in bright or dimly lit
environments.
● Wide viewing angle.
● Can be used with gloves on.
INTEGRAL BATTERY
● Ideal for monitoring during transfer.
● Essential where mains power is unreliable.
● Provides up to 4 hours use.
MATERNAL VITAL SIGNS
● Maternal heart rate.
● NIBP
● SpO2
MULTI FUNCTIONAL DISPLAY
● Toggle between “BIG Numbers” and FHR trace display modes.
● On screen trace review & scrolling with clear colour separation of multiple traces.
PATIENT RECORDS
● Patient databases.
● On-screen GA calculator (LMP, GA, EDD).
● Integrated software system interface.
SPECIFICATION
| Model | ALERIO Smart 4200 |
| Generator Type | High Frequency DC Output |
| Output kV | 40kV–120kV in steps of 1kV |
| Output mA | 100 mA maximum |
| Output Power | 4.2 kW (100kV, 42mA) |
| mAs Range | 01–250 mAs |
| Exposure Time | 0.01s – 5.0s |
| Focal Spot | 0.6 mm/1.8mm IEC |
| Leakage Radiation | < 1 mGy in one hour / (<100mR/hr) |
| Collimator | Manual Collimator with LED bulb |
| Dimensions Footprint | 850mm × 690 mm (Floor Area) |
| Overall Weight | <80kg |
| User Interface | Digital with APR and Exposure Switch |
| Mains Voltage Range | 180VAC–260VAC, 15A |
ALERIO Smart 4200 is a compact yet powerful Mobile X-Ray Machine for general radiographic procedures. It uses advanced High Frequency DC Output x-ray generation technology. The overall size and weight of the equipment is low, making it ideal for applications with space constraints.
The DC output enables good x-ray imaging at lower exposure settings. The equipment can be powered from a standard power outlet. It has an in-built voltage stabilizer to counter mains voltage variations. The equipment has a selectable second focus for finer low dose imaging. ALERIO Smart is designed and Made in India by an ISO 13485 certified company. It comes with warranty and support. The unit is BIS and AERB regulatory certified.
Typical Usage Environment
- Clinics, Laboratories & Hospitals
- ER & Patient Bedside X-ray
- Remote Locations & Home Visits
- Secondary to Fixed X-Ray
40kV–120kV, 100mA, 250mAs, 4.2kW
Dual Focus
FEATURES
- 100kHz HF DC Generator
- 100mA / 40–120kV / 4.2kW
- Dual Focus LF 1.8mm & SF 0.6 mm
- Digital Command & Control
- Compact Size and Weight
- Programmable APR Feature
- In-Built Stabiliser
