Operation Theater
Odio et unde deleniti. Deserunt numquam exercitationem. Officiis quo odio sint voluptas consequatur ut a odio voluptatem. Sit dolorum debitis veritatis natus dolores. Quasi ratione sint. Sit quaerat ipsum dolorem.

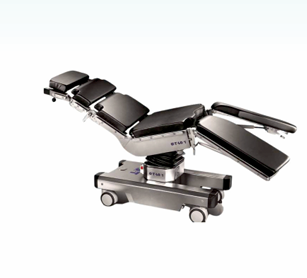

40/1
| 1. | 6 to 8 section Table top |
| 2. | Integrated lower back |
| 3. | Height 700 - 1060 MM |
| 4. | Load capacity of 270 Kg |
| 5. | Sliding of 250 MM |
| 6. | 4 Swivelling castors have an integrated pins system which is activated by a foot pedal |
| 7. | Optional 5th retractable wheel allows the user to comfortably and safely move the table in case of long transfers |
| 8. | Intuitive wired/wireless/integrated control panel/emergency device with a manual pedal pump |

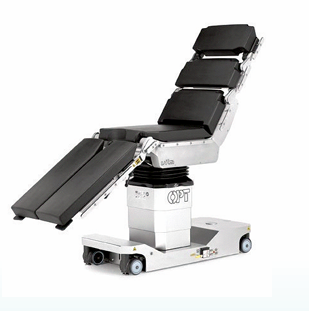

VITA
| 1. | 6 to 8 section Table top |
| 2. | Integrated lower back |
| 3. | Height 575 - 1075 MM |
| 4. | Load capacity of 270 Kg |
| 5. | Sliding of 350 MM on cranial and caudal position |
| 6. | 4 Swivelling castors have an integrated pins system which is activated by a foot pedal |
| 7. | Optional 5th retractable wheel allows the user to comfortably and safely move the table in case of long transfers |
| 8. | Intuitive wired/wireless/integrated control panel/emergency device with a manual pedal pump |
ASSO – Hybrid Mobile Table
| 1. | 6 to 8 section Table top |
| 2. | Integrated lower back |
| 3. | Height 600 - 1060 MM |
| 4. | Load capacity of 270 Kg |
| 5. | Sliding of 350 MM on cranial and caudal position |
| 6. | 4 Swivelling castors have an integrated pins system which is activated by a foot pedal |
| 7. | Optional 5th retractable wheel allows the user to comfortably and safely move the table in case of long transfers |
| 8. | Intuitive wired/wireless/integrated control panel/emergency device with a manual pedal pump |

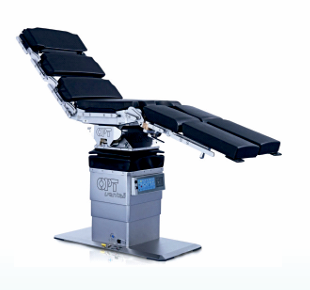

System Table – VANTO
| 1. | Completely Modular Table Tops |
| 2. | Fix Torque system that allows hook/unhook the sections of the OT Table |
| 3. | The VANTO II system offers the exclusive possibility of accessing the column from all four sides |
| 4. | Three type of columns for necessity |
| 5. | OPT is the only company in the world that can offer 3 types of longitudinal trolleys (head side and foot side insertion) and 3 types of lateral trolleys (right and left side insertion) to move only the table top and/or the entire system (column and a table top) |
| 6. | Height – 600 MM to 1150 MM |
EHT – 600
EHT – 600 by Advantage Medical Equipments is an affordable yet high quality multipurpose Electro-Hydraulic operating table, specially designed for C-Arm image intensifier to meet the requirement of different surgery. With its total Radio-Translucent tablet top without cross member, it allows excellent patient positioning.
Optional Accessories
Gynaecology / Urology Surgery
- Stainless Steel Transurethral Tray with sieve drain hose
- Stainless Steel Drainage Tray with drain hose
- Extension piece with Side Rails
Miscellaneous
- X-Ray Cassette Tunnel for Radiography
- Cassette Holder with Carrier for A.P. Radiography
- Stainless Steel Lateral Cassette Holder
- Stainless Steel Instrument Tray with Frame Hanger
- Stainless Steel Mayo’s Tray with Frame Hanger
- Adjustable Arm Support with Cushion for Lateral Position
- Saline Drip Rod with Clamp
- Split Leg Section
- 100 mm Dia Twin Wheel Castors with Single Lever Locking
- Auxiliary Control on Column
- Battery Backup

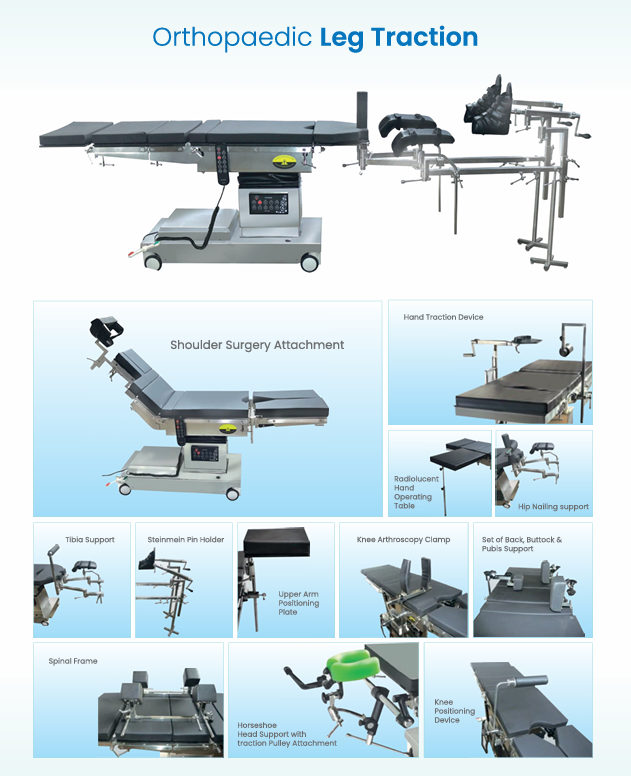

Orthopaedic – Surgery
- Orthopaedic Leg Traction Device
- Hand Traction Device
- Popliteal Support
- Radiolucent Hand Operating Table
- Hip Nailing Support
- Tibia Support
- Steinmen Pin Holding Clamp Upper Arm Positioning Plate (Prone/Lateral Position)
- Arthroscopy Clamp
- Set of Back, Buttock & Pubis Support (THR/IRK Support) Should Surgery Attachment (Beach Chair Position)
- Spinal Frame
- Horsehoe Headrest with Traction Pulley Attachment
- Knee Positioning Device
Neuro–Surgery
- Neurosurgical Attachments for Prone/Sitting Position Head-Rest
- Sugita Head Clamp
- Spinal Bridge
- M Type Face Head Rest for Prone/Sitting Position
Accessories and features shown in the Brochure may not be part of standard equipment.
Dimensions and data in the brochure are approximate and for customer’s information only.
The company reserves the right to alter specifications and design without prior notice for
further improvement.
Certification: ISO 9001:2015, ISO 13485:2016

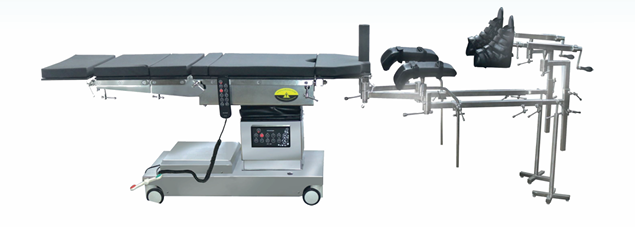

Operating Table
Operating table designed to obtain ideal operative posture and to cope with various surgical procedures ranging from microsurgery to general surgery.
Salient Features
- The eccentrically positioned five section Radio-Translucent Top fixed on heavy duty Stainless Steel SS304 Grade Sheet arms without cross members, to optimize image intensifier accessibility for both A/P and Lateral Exposures.
- Operating positions of table top i.e. Height adjustment, Back Section, Trendelenburg, Reverse Trendelenburg, Lateral Tilt and Table Top Sliding are quickly and precisely controlled by handheld Remote with backlit symbolic soft touch buttons.
- Remote controlled movements are operated by an IMPORTED ELECTRO-HYDRAULIC SYSTEM comprising Hydraulic Motor Pump and Solenoid Valves to assure smooth and quiet movements.
- Interchangeable and detachable Head & Leg sections allow full table length use of image intensifier and use of table in different surgical procedures.
- Head and Foot section are operated manually.
- Kidney Elevator – manually operated – Radiolucent.
- Large perineal cut-out for drainage.
- A strong and sturdy base incorporating four swivel castors with Independent locking system ensures stability and smooth floor movements.
- Easy to clean Stainless Steel SS304 Grade Base and Column cover to minimize infection risk.
- Stainless Steel SS304 Grade Side Rails and Accessories.
Technical Specification
| Table Top Dimension | Width 530 mm (without Side Rails), Length 1960 mm |
| Height | Minimum 700 mm to Maximum 1000 mm (Without Mattress) |
| Head Section | Up 45 degree, Down 90 degree |
| Back Section | Up 75 degree, Down 25 degree |
| Leg Section | Down 90 degree |
| Trendelenburg / Reverse Trendelenburg | 25/25 degree |
| Side Tilt | 20/20 degree |
| Longitudinal Table Top Slide | 250 mm |
Standard Accessories
- L-shaped Anaesthetic Frame: 1 Pc.
- Lateral Support with Pad: 2 Pcs.
- Shoulder Support with Pad: 2 Pcs.
- Padded Arm Board with Strap: 2 Pcs.
- Knee Crutches with Pad: 2 Pcs.
- 50 MM High Density PU Foam Mattress: 1 Set

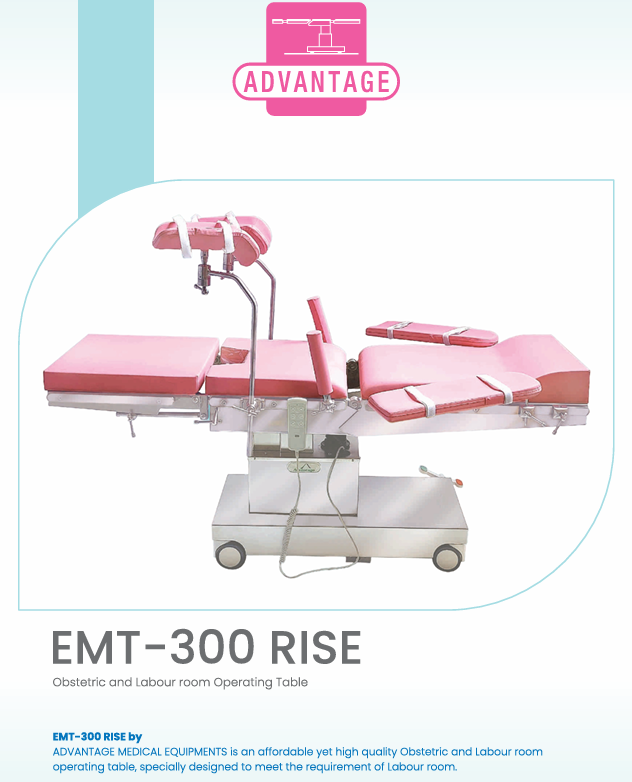

EMT-300 RISE
EMT-300 RISE by Advantage Medical Equipments is an affordable yet high quality Obstetric and Labour room operating table, specially designed to meet the requirement of Labour room.
Salient Features
- Operating positions Height, Trendelenburg/Reverse Trendelenburg and Back section are precisely controlled by Handheld Wired Remote Control through Imported Linear Actuators.
- Heavy gauge Stainless Steel (304 q.) table top for longer life and minimize infection risk.
- Beautifully upholstered Table Top.
- Large perineal cut in middle section.
- Stainless Steel Drainage Bowl.
- Leg section manually operated and detachable.
- Stainless Steel IV Rod.
- Strong and sturdy base incorporating four 100 mm twin wheel swivel castors with Single Lever locking system ensures stability and smooth floor movements.
- Stainless Steel (304 q.) base and column cover to minimize infection risk.
Technical Specification
| Table Top Dimension | Width 600 mm (without Side Rails), Length 1960 mm |
| Height | Minimum 715 mm to Maximum 965 mm (With Mattress) |
| Back Section | Up 65 degree |
| Leg Section | Down 90 degree |
| Trendelenburg / Reverse Trendelenburg | 20/20 degree |
Standard Accessories
- Arm Board: 2 Nos.
- L-shape Anaesthesia Screen: 1 No.
- Hand Grip: 2 Nos.
- Lithotomy Knee Crutches: 2 Nos.

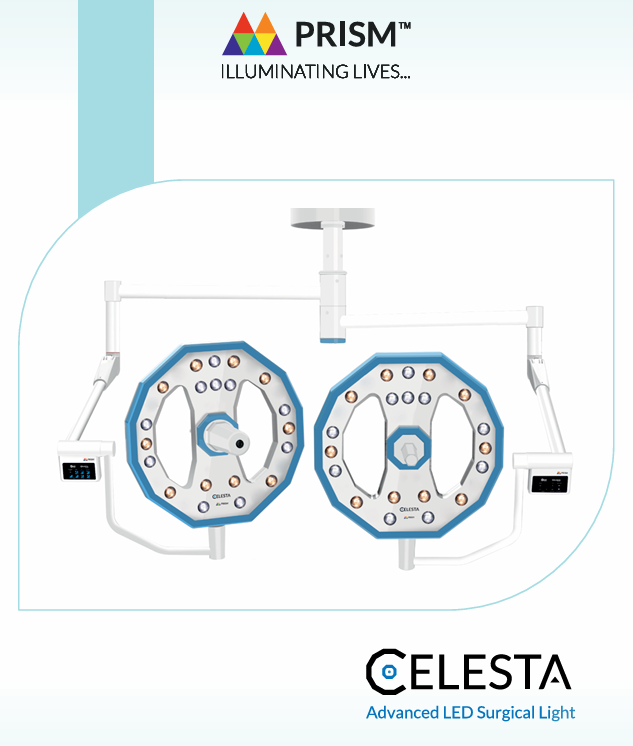

Celesta Surgical Lights
The Celesta Series surgical lights are designed to provide high-quality illumination for surgeries with various configurations available: Mobile Dome, Single Dome, Double Dome, and Triple Dome. Options include camera integration for advanced surgical recording and monitoring.
Technical Specifications
| Parameter | Celesta-A | Celesta-C | Celesta-D | Celesta-F |
|---|---|---|---|---|
| Max. Central Illuminance at 1m distance | 130,000 Lux | 130,000 Lux | 160,000 Lux | 160,000 Lux |
| Light field diameter at 1m distance (d10) | 160mm–300mm | 160mm–300mm | 160mm–300mm | 160mm–300mm |
| Light head diameter | 600 mm | 600 mm | 600 mm | 600 mm |
| Depth of Illuminance at 20% (L1+L2) | 1200 mm | 1200 mm | 1200 mm | 1200 mm |
| Depth of Illuminance at 60% (L1+L2) | 450 mm | 450 mm | 500 mm | 500 mm |
| Correlated Color Temperature (CCT) | 4500K–5500K | 3500K–5500K | 4500K–5000K | 4500K–5000K |
| Color Rendering Index (CRI) | 95 | 95 | 95 | 95 |
| Power consumption | 85 W | 85 W | 65 W | 65 W |
| Shadow dilution with tube | 92% | 92% | 94% | 94% |
| Shadow dilution with one mask | 74% | 74% | 75% | 75% |
| Shadow dilution with tube & one mask | 67% | 67% | 70% | 70% |
| Shadow dilution with two masks | 53% | 53% | 55% | 55% |
| Shadow dilution with tube & two masks | 45% | 45% | 45% | 45% |
| Focus Mode* | Fixed | Fixed | Variable | Variable |
| Dimming Range | 0–100% | |||
| Service life of LEDs | 60,000 hrs | |||
| Power supply** | 230V ±10% 50 Hz ±5% | |||
| Ambient/Operating Temperature | 5°C – 40°C | |||
| Storage Temperature | -40°C – +60°C | |||
| Humidity | 10% – 90% | |||
| Battery Backup (Optional) | 30 min ± 2 hrs | |||
Camera Specifications
| Parameter | Camera-C | Camera-D |
|---|---|---|
| Image sensor | 1/3 – type CMOS (Progressive Scan) | |
| Effective number of pixels | 4.08 M pixels | |
| Signal system (HD) | 720p, 1080p | |
| Video Output | Camera-C | Camera-D |
| Zoom | 10X optical, 16X digital | |
| White balance | Auto | |
| Exposure | Auto, Manual | |
| Shutter speed | 1/10 to 1/10,000 | |
| Focusing system | Auto, Manual, One push | |
| Signal to noise ratio (SNR) | More than 50dB | |
| Aperture | F1.8 – 3.4 | |
Configurations
- Mobile Dome
- Single Dome
- Double Dome
- Triple Dome

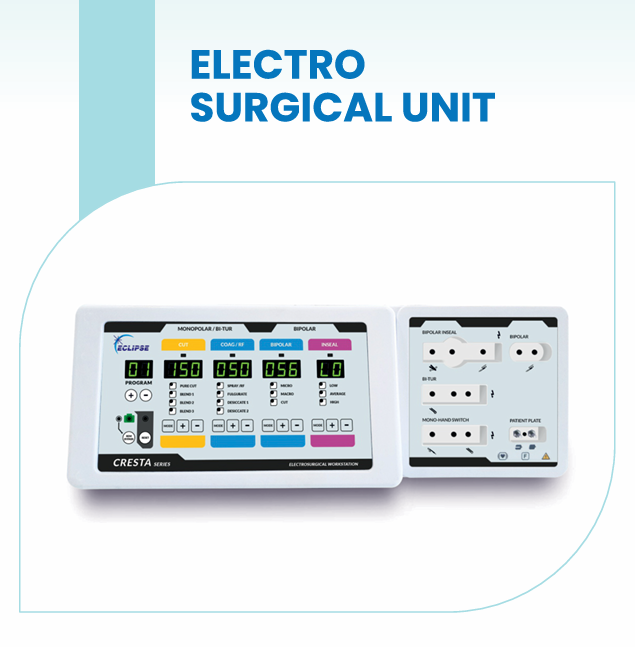

CRESTA Series – Electrosurgical Unit
The CRESTA Series Electrosurgical Unit is a high-performance, microcontroller-based ESU designed with advanced safety features, multiple modes, and mobile app integration to provide reliable performance in surgical environments.
Key Features
- Safe Saline BI-TUR Cautery.
- Microcontroller based High Performance ESU.
- 100 user selectable program.
- Tissue response Technology: Maintains set power over wide range of tissue.
- Feedback Technology.
- Auto Stop function: Stops energy delivery with audio indication.
- Saline Resection: Cut & Coag mode.
- Cardiac protection circuit.
- Vessel Sealing System.
- Patient return electrode Monitoring Circuit.
- Recall Function: Automatic last status resume.
- Monopolar Cut and Coag Mode.
- Cost Effective Saline use: Resectoscope can be used with regular loops.
- 3 Endo Mode: Tissue feedback Pulse Interval controlled Pulse Cut for Polypectomy & Papillotomy.
Optional Features
“World’s First Mobile App Touch Screen System”
- India’s first digital display with touch sense keys.
- World’s 1st mobile app controlled ESU facilitating highest personal control and choice to operating surgeon.
- Argon beam coagulator upgradable: ESU can be upgraded for Argon Beam Coagulation module.
- Wireless foot switch.
Technical Specifications
| Mode | Particular | Impedance | Output Power (Max) | Crest Factor (Max) |
|---|---|---|---|---|
| Monopolar Cut | Pure Cut | 300 Ohm | 300 W | 1.5 |
| Blend 1 | 300 Ohm | 250 W | 1.8 | |
| Blend 2 | 300 Ohm | 200 W | 2.0 | |
| Blend 3 | 300 Ohm | 200 W | 2.2 | |
| Monopolar Coag | Spray | 300 Ohm | 120 W | 7.2 |
| Fulgurate | 300 Ohm | 150 W | 5 | |
| Desiccate 1 | 300 Ohm | 100 W | 1.5 | |
| Desiccate 2 | 300 Ohm | 100 W | 1.6 | |
| **Pure Cut | 300 Ohm | 300 W | 1.4 | |
| *Saline BI-TUR | Desiccate | 100 Ohm | 150 W | 1.5 |
| Bipolar 1 | Micro | 100 Ohm | 120 W | 1.5 |
| Macro | 100 Ohm | 120 W | 1.6 | |
| Bipolar 2 | Cut | 100 Ohm | 120 W | 1.4 |
| L1 | 100 Ohm | 35 W | 2.3 | |
| L2 | 100 Ohm | 100 W | 2.3 | |
| Bipolar Inseal | L3 – L5 | 100 Ohm | 100 W | 2.3 |
| A3 – A5 | 100 Ohm | 150 W | 2 | |
| H3 – H5 | 100 Ohm | 200 W | 1.8 | |
| Output Voltage (Max) | 9000 V pk-pk | |||
Note: The ratings mentioned in the table above are maximum ratings.
* All the above output power are available in ±20%.
** Maximum Power: 375W.
